TreeTalk Universal Wireless Communicator plus Support Panel

Universal Communicator and PTT panel are designed for unbroken real-time voice conversations between remote objects, like elevators and isolated rooms.

Details. Preorder

All devices are compatible with TreeTalk Dispatcher software.

All devices can be modified and adapted in accordance with the needs of the customer and the specific technical specifications.
Need more information - write to us.

...

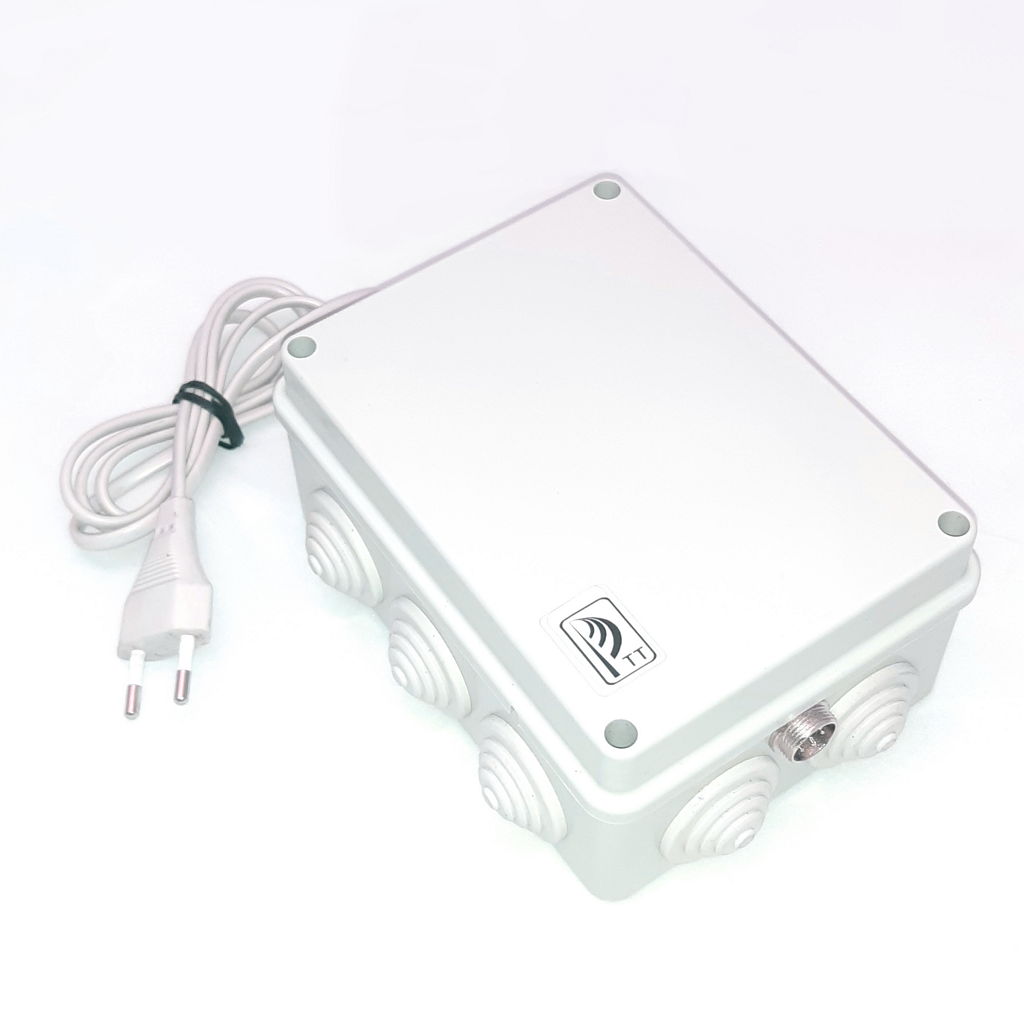

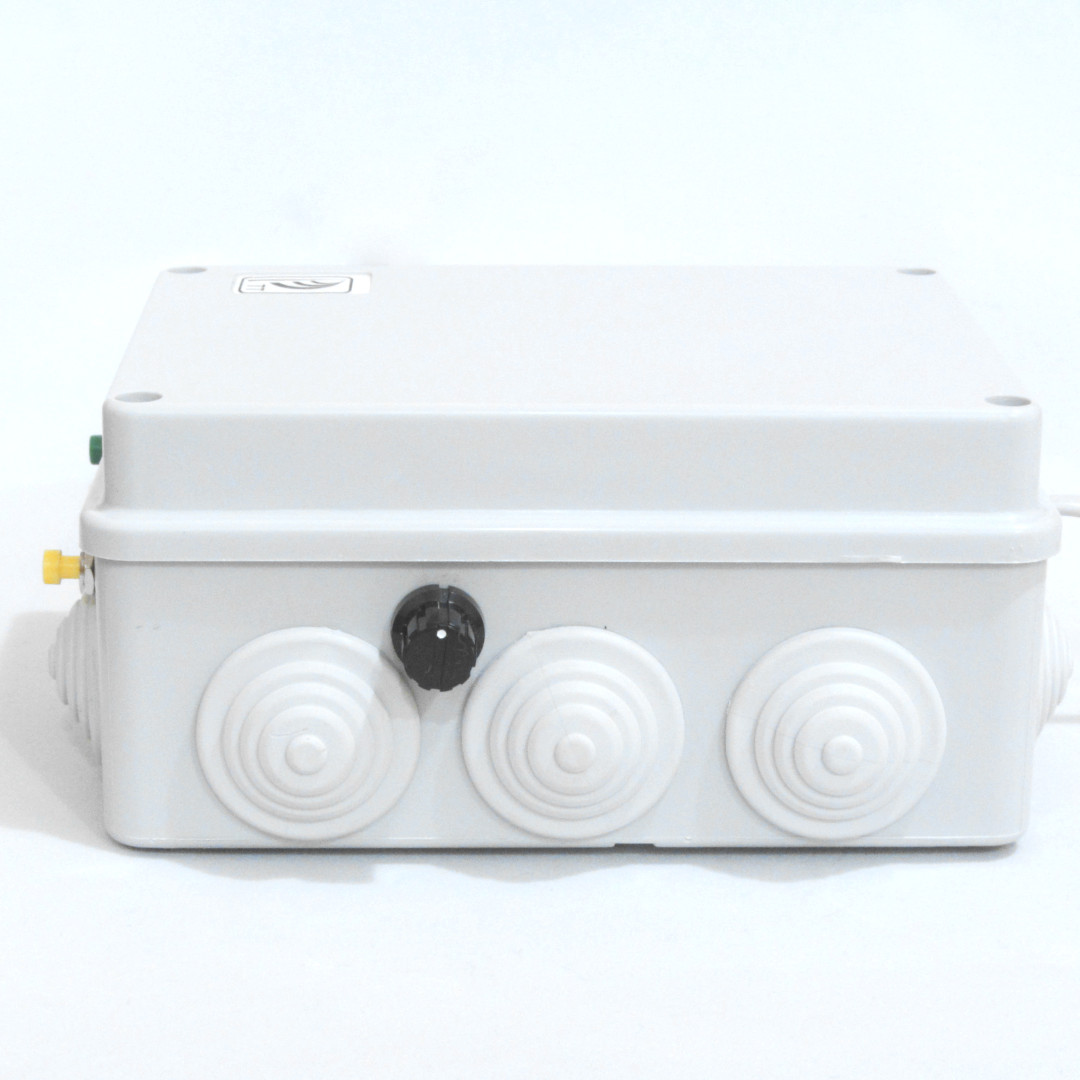

TreeTalk UCB-1 WiFi Basic 12v
199 eur

Equiped with built-in WiFi wireless module and a built-in antenna. Powered by an external source 12 V 1 A. Compatible with standard 12 volt power supplies (it is recommended to use a power supply with a backup battery). An excellent solution for elevators in buildings up to 5 floors, for vehicles and delivery robots.

...
TreeTalk UCB-1 WiFi Long 12/220v
279 eur

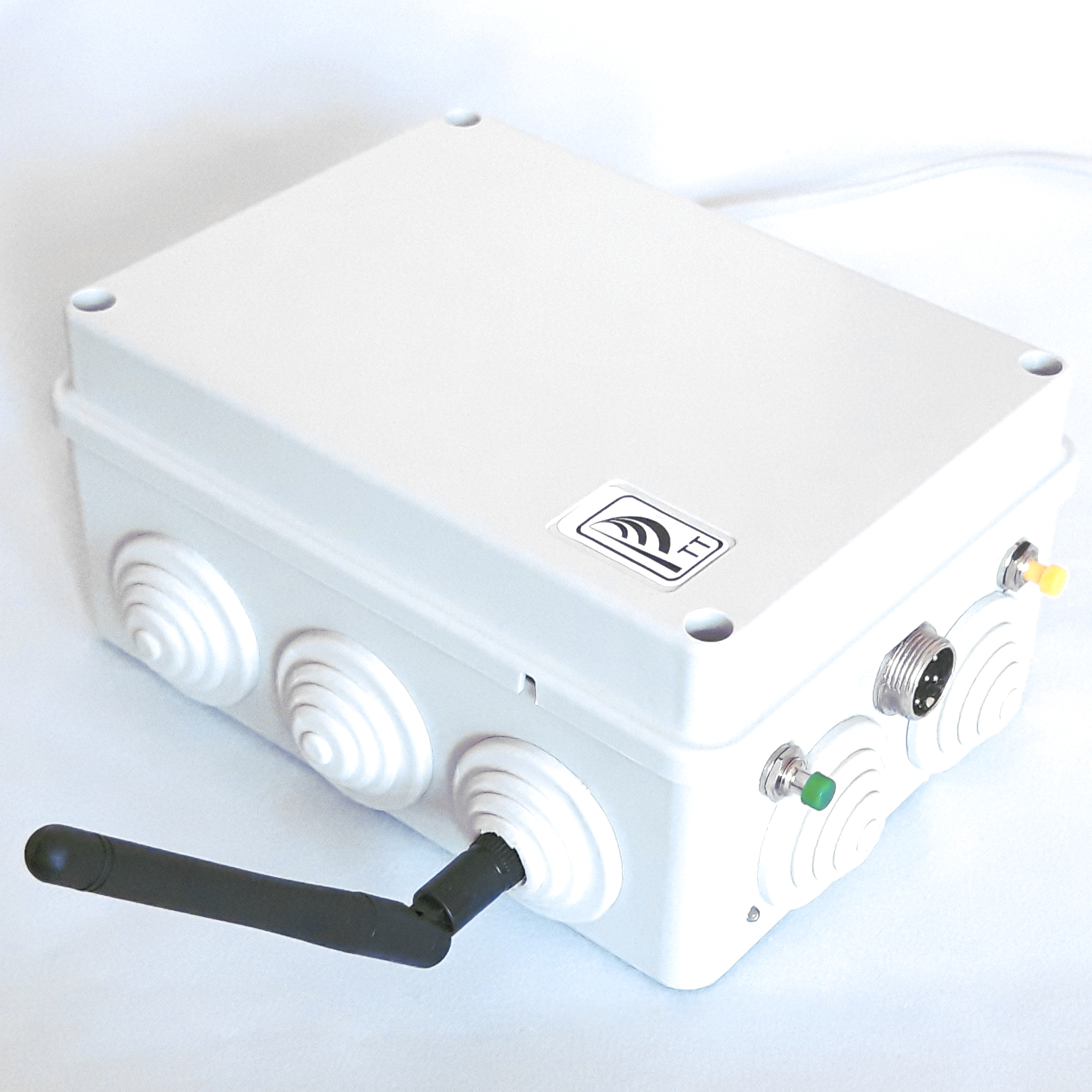

Equipped with built-in WiFi wireless module and effective external antenna. It is possible to connect to the network with an Ethernet cable. Powered by 12 or 220 V power supply. Built-in uninterruptible power supply battery provides 1-2 hours of autonomous work in case of a power outage.
An excellent solution for elevators in buildings up to 10 floors, as well as for parking lots, garages and warehouses.

...

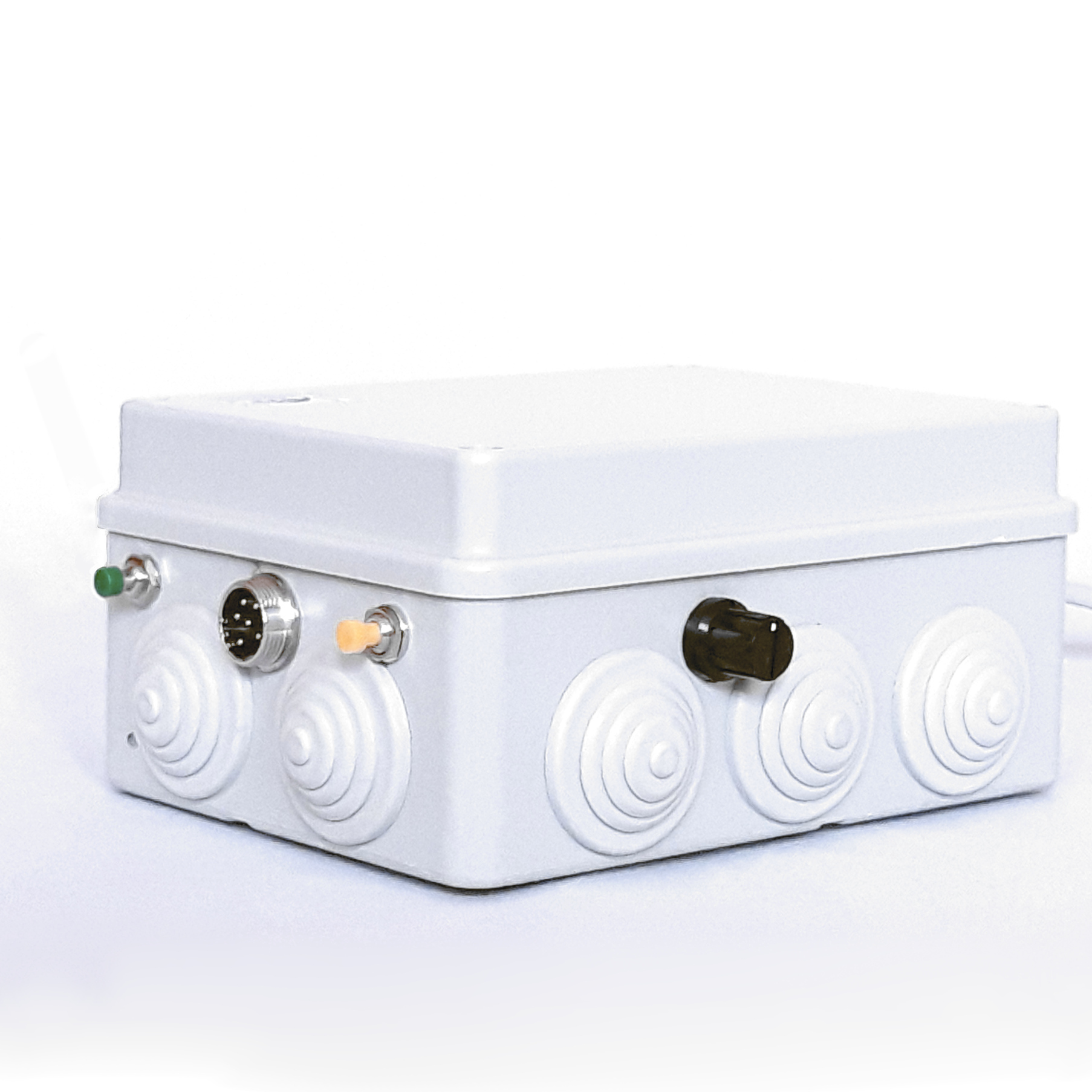

TreeTalk UCB-1 LTE 12/220v
329 eur

Equipped with a built-in 3G / 4g (LTE) wireless module. It is possible to connect to the network with an Ethernet cable. Powered by 12 or 220 V. Built-in uninterruptible power supply battery provides 1 hour of operation in case of a power outage.
An excellent solution for elevators in buildings of any number of storeys, for parking lots, garages and warehouses, as well as for mobile objects (vehicles, delivery robots); subject to coverage by networks of mobile operators.

The Advantages of TreeTalk Universal Communicator

  • Modular design
  • It does not require wiring
  • Voice communication is always on – just push a button and talk
  • If occasionally messages come from several places at once, they do not interfere with each other
  • Using the same program, the operator can communicate with mobile repair crews, concierges, service personnel and other staff
  • The built-in emergency power supply of the communicator allows to maintain communication for at least 1-2 hours in the event of a power outage
Learn More...

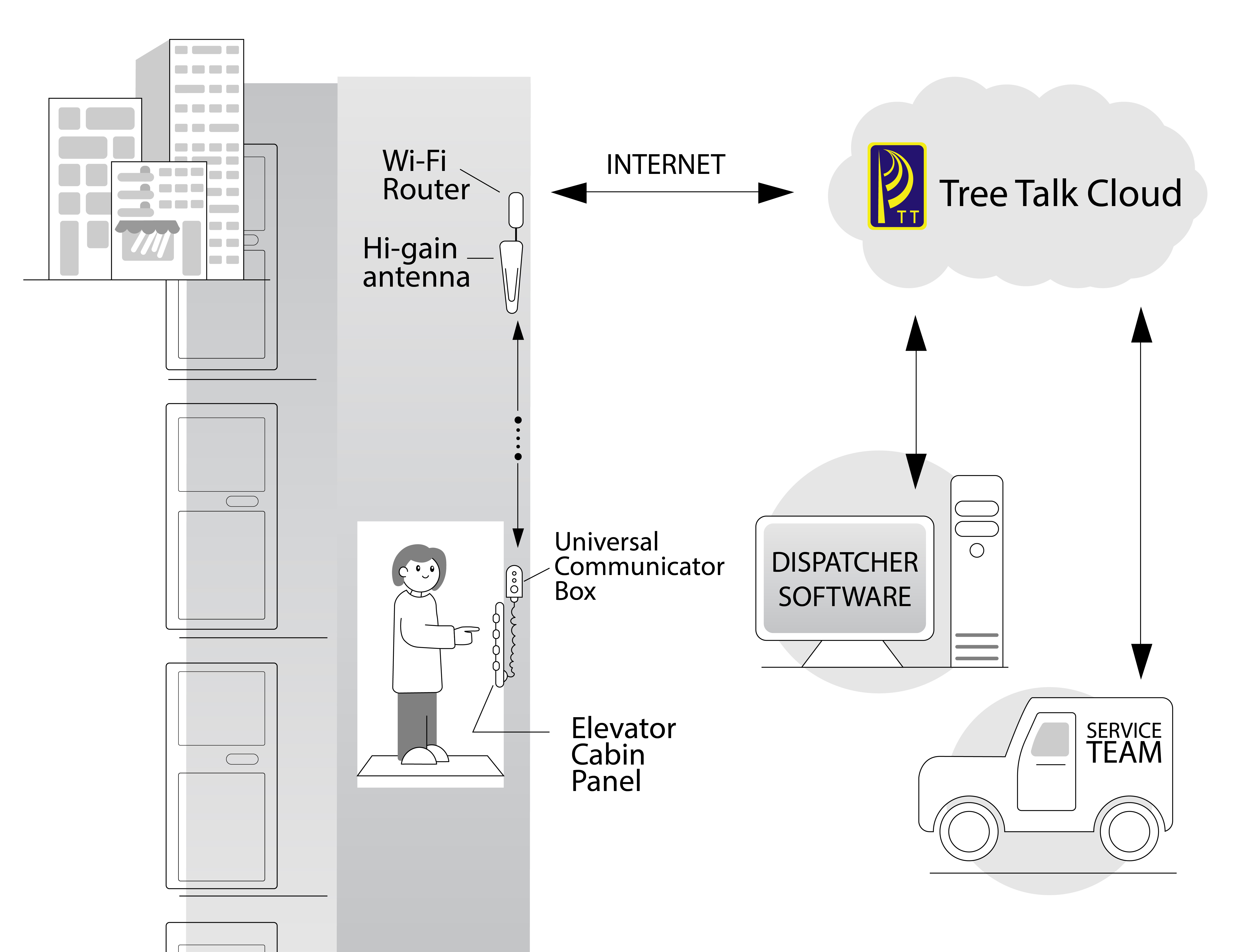

How to use TreeTalk UCB as an Elevator Communicator

  • Connect the Universal Communicator Box (UCB) to the internet
  • Connect UCB to TreeTalk user-friendly app

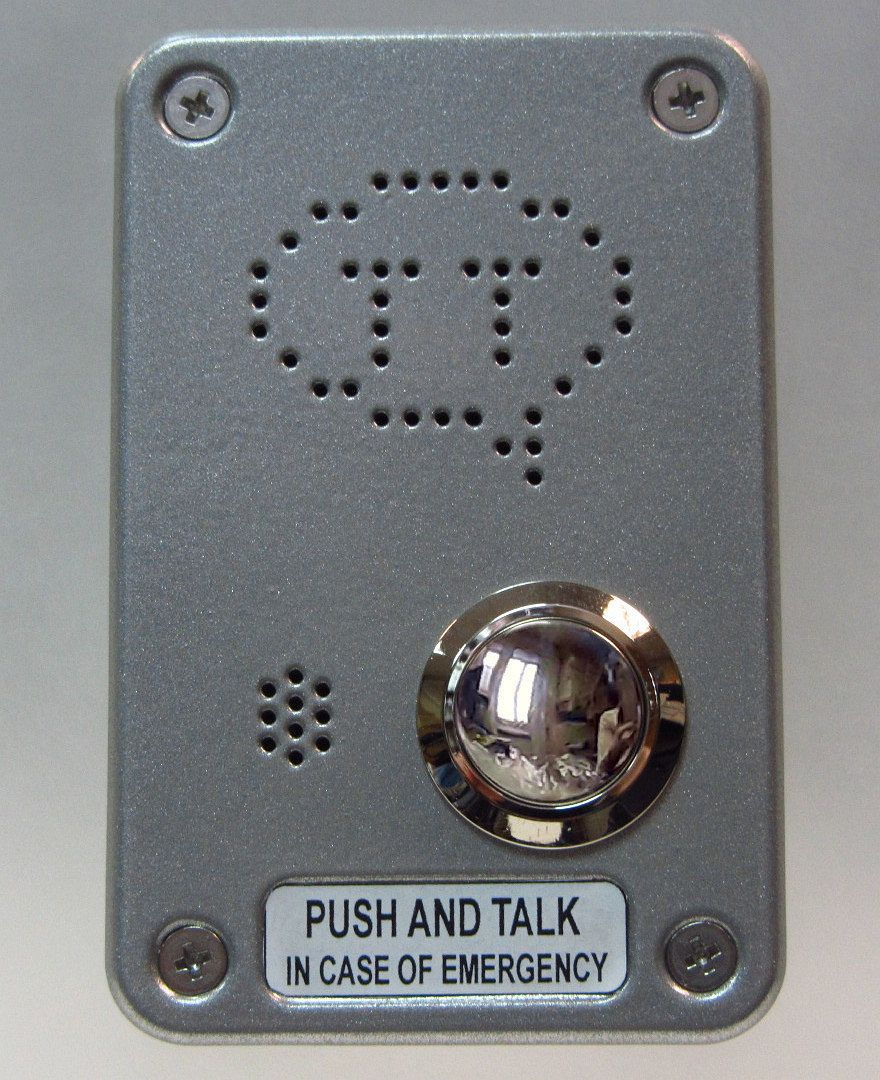

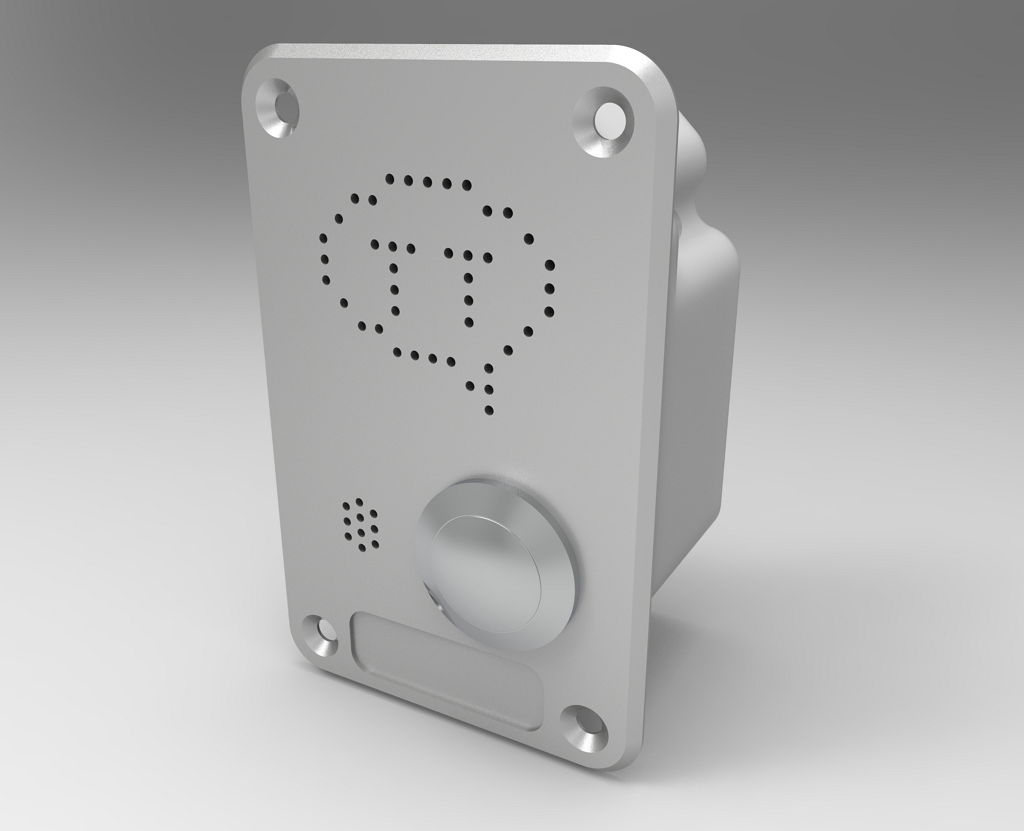

  • Connect TreeTalk PTT Panel (or your elevator panel) to UCB using a universal twisted cable
  • Ready to use!
Learn More...

See more about TreeTalk at the technology page.

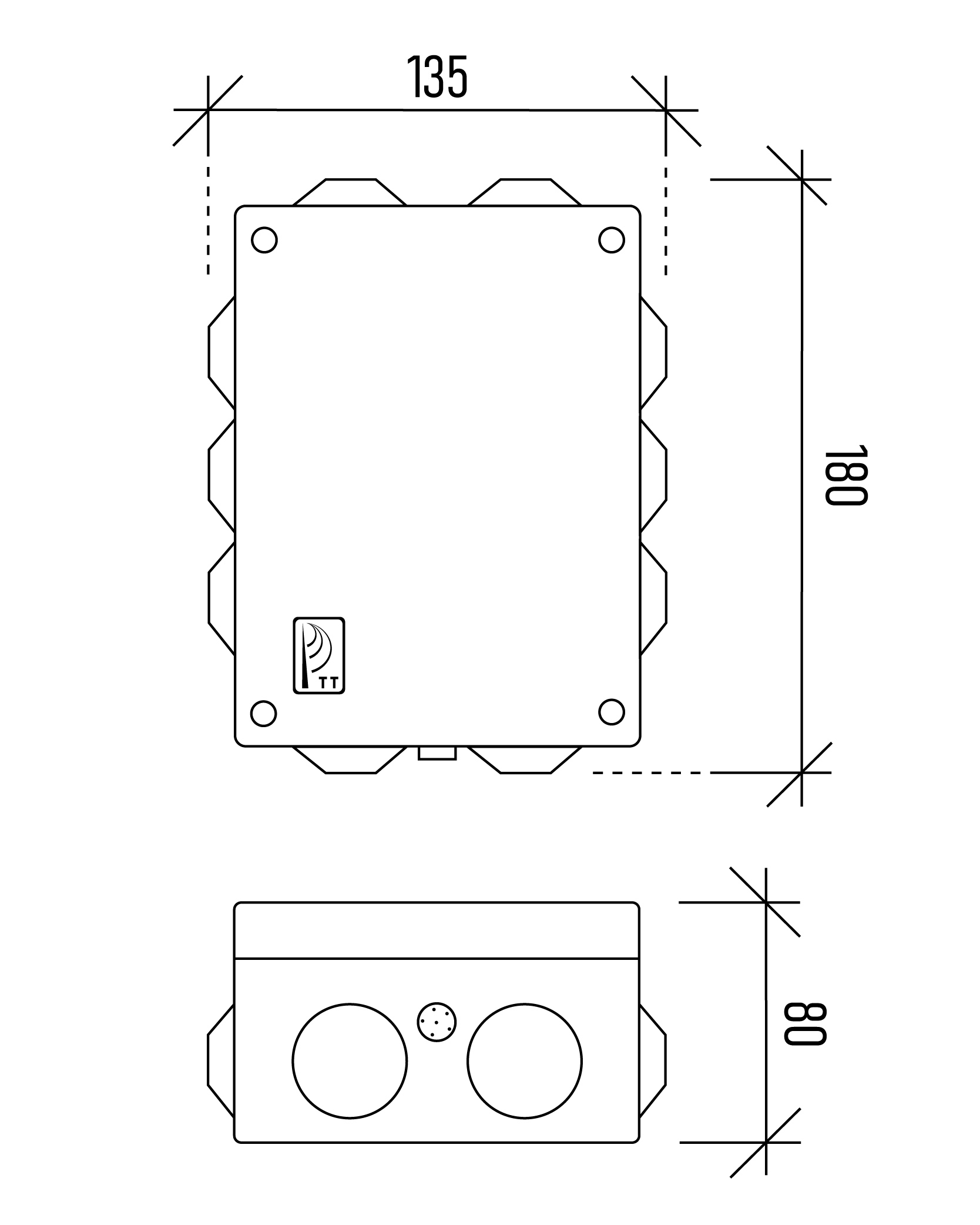

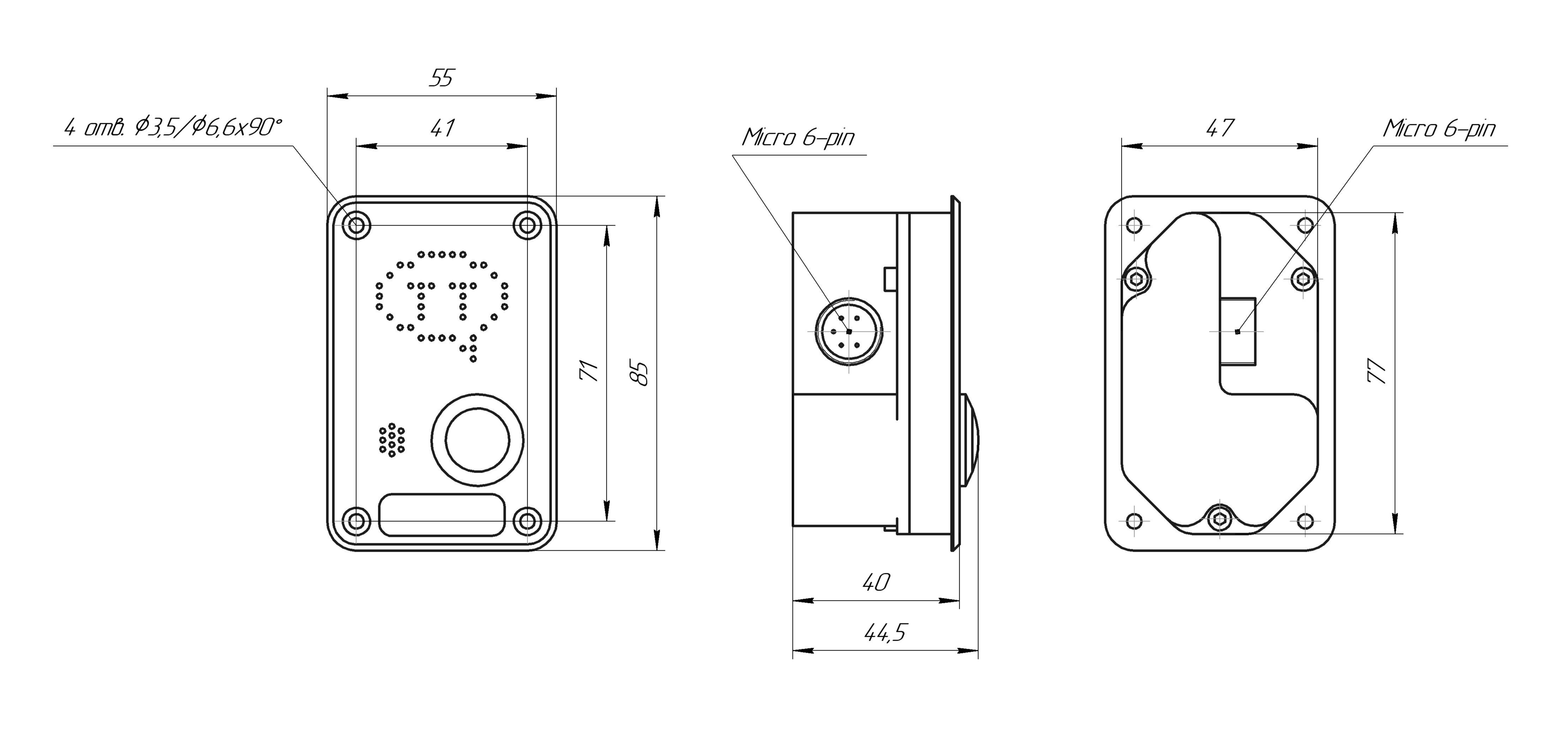

Sizes
